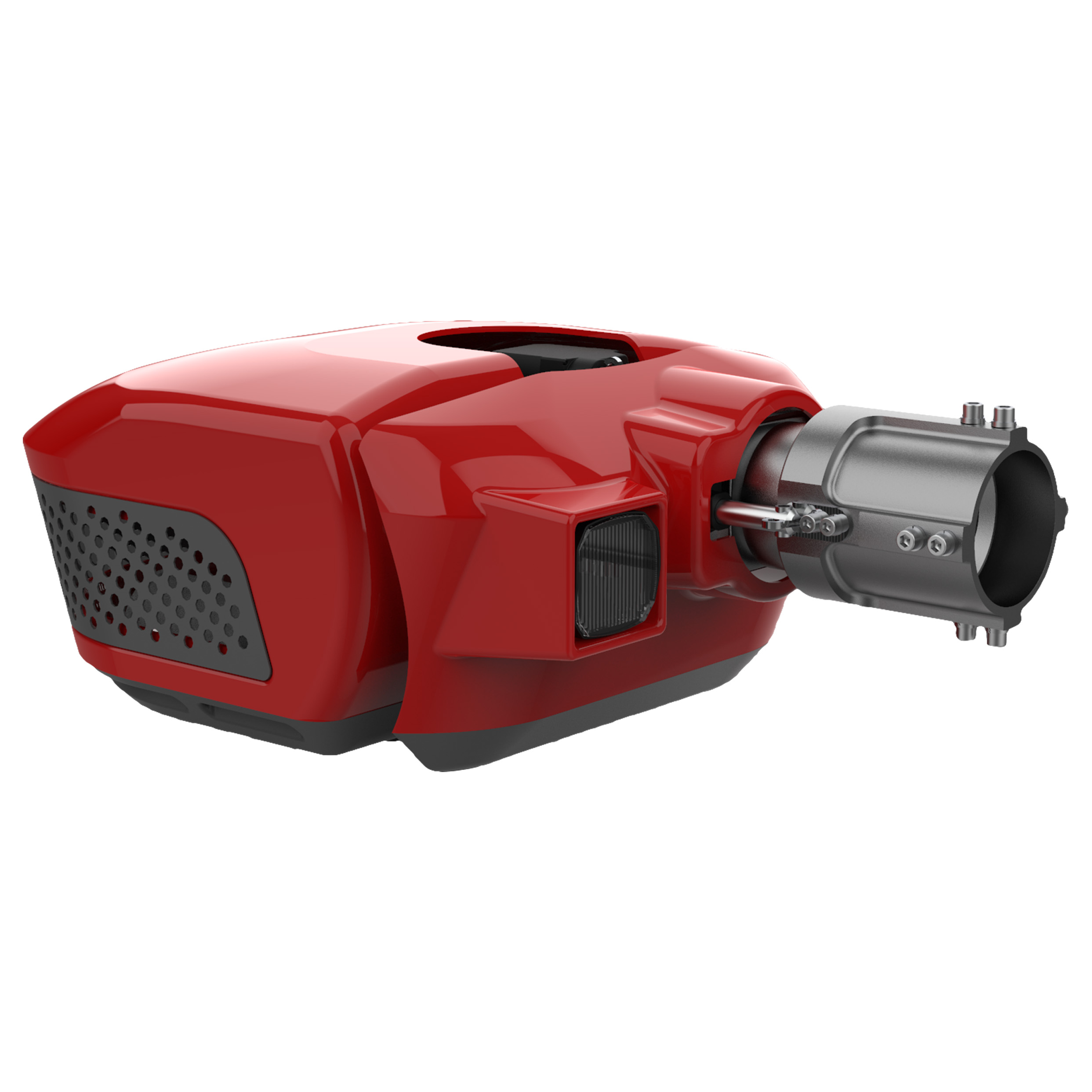

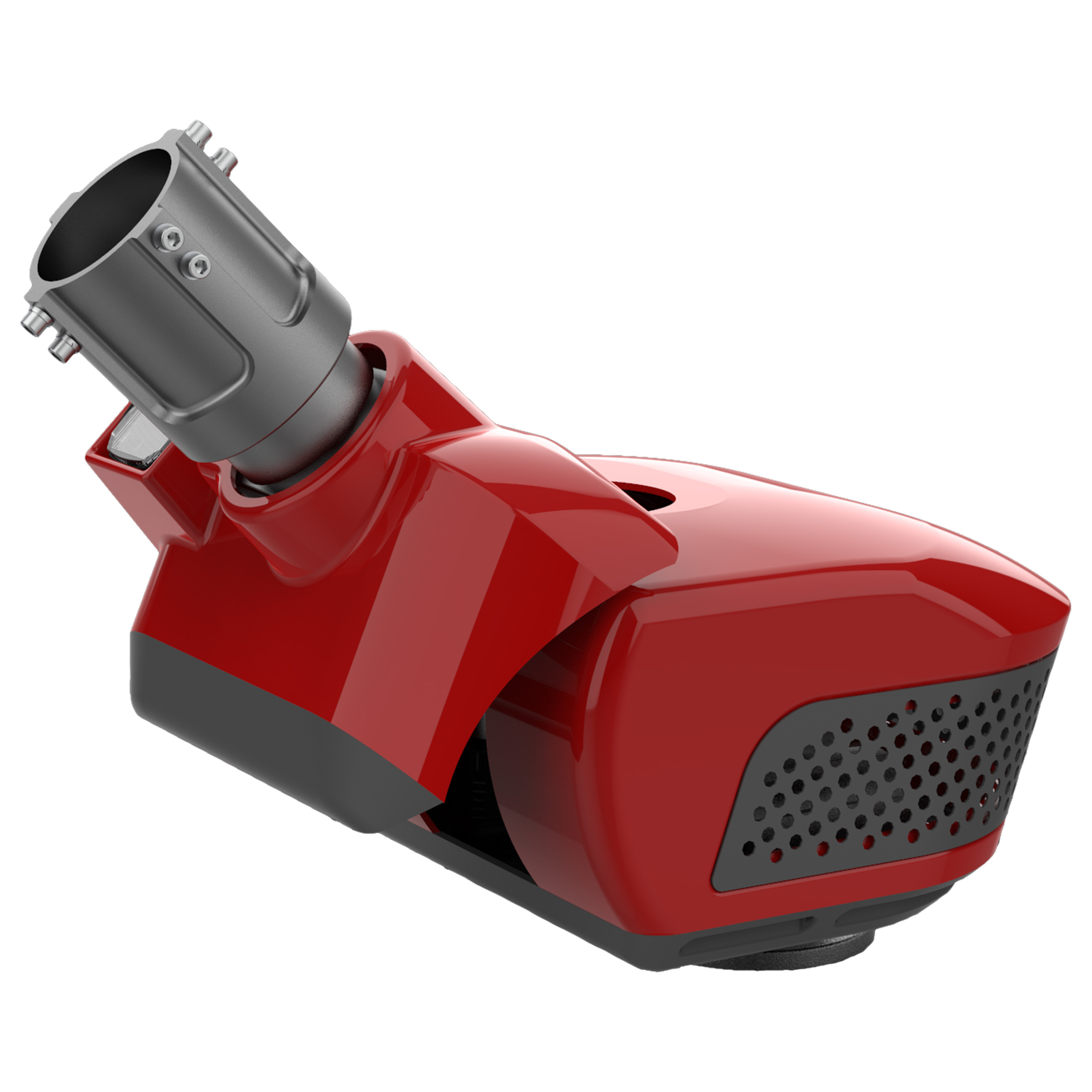

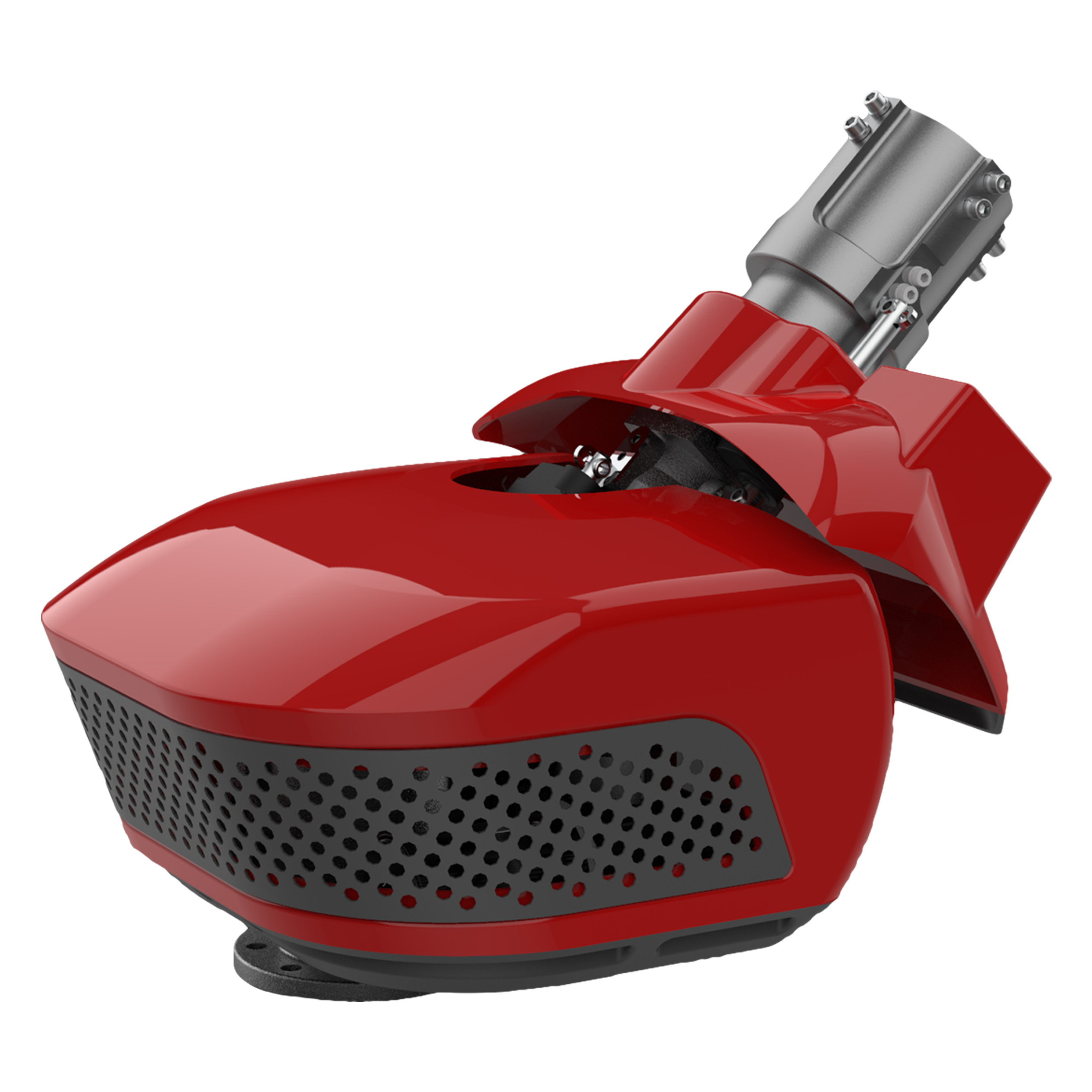

Our CUMULUS monitor is a compact, electrical monitor for a various environment. It can be used as a roof monitor for all types of vehicles. The flow rate can go up to 7,600 lpm at 7 bar at the monitor’s outlet. Vertical range is from -20° to +90°, horizontal range 360° by electric motors.It can be equipped with different outlet equipment or couplings.
| Technical Specifications | Options |
|---|---|
| Drive | Electric motors 12V, 24V (Optional handwheels for emergency operations) |
| Max. Flow Rate | 7600 lpm @7bar nozzle pressure (Can be adjusted via lineer actuator) |
| Max. Pressure | 16 bar |
| Inlet | 4" NPT, 4" BSPT, DN 100 Flange |
| Outlet | 3½" Flange |
| Vertical Range | -20º to +90º (170º) |
| Horizontal Range | 360º max. ( Can be set by security bolts) |
| Nozzle Type | Electronic adjustable flow (3000-7600 lpm) straight jet/stream and wide angle fog |
| Material/Finish | Aluminum / Hard Anodized |
| Technical Specifications | Options |
|---|---|
| Camera | Optional |
| Controller | Joystick, remote control |
| Position Indicator | Rotary switch, absolute encoder |
| Projector | Long range, close range or both |

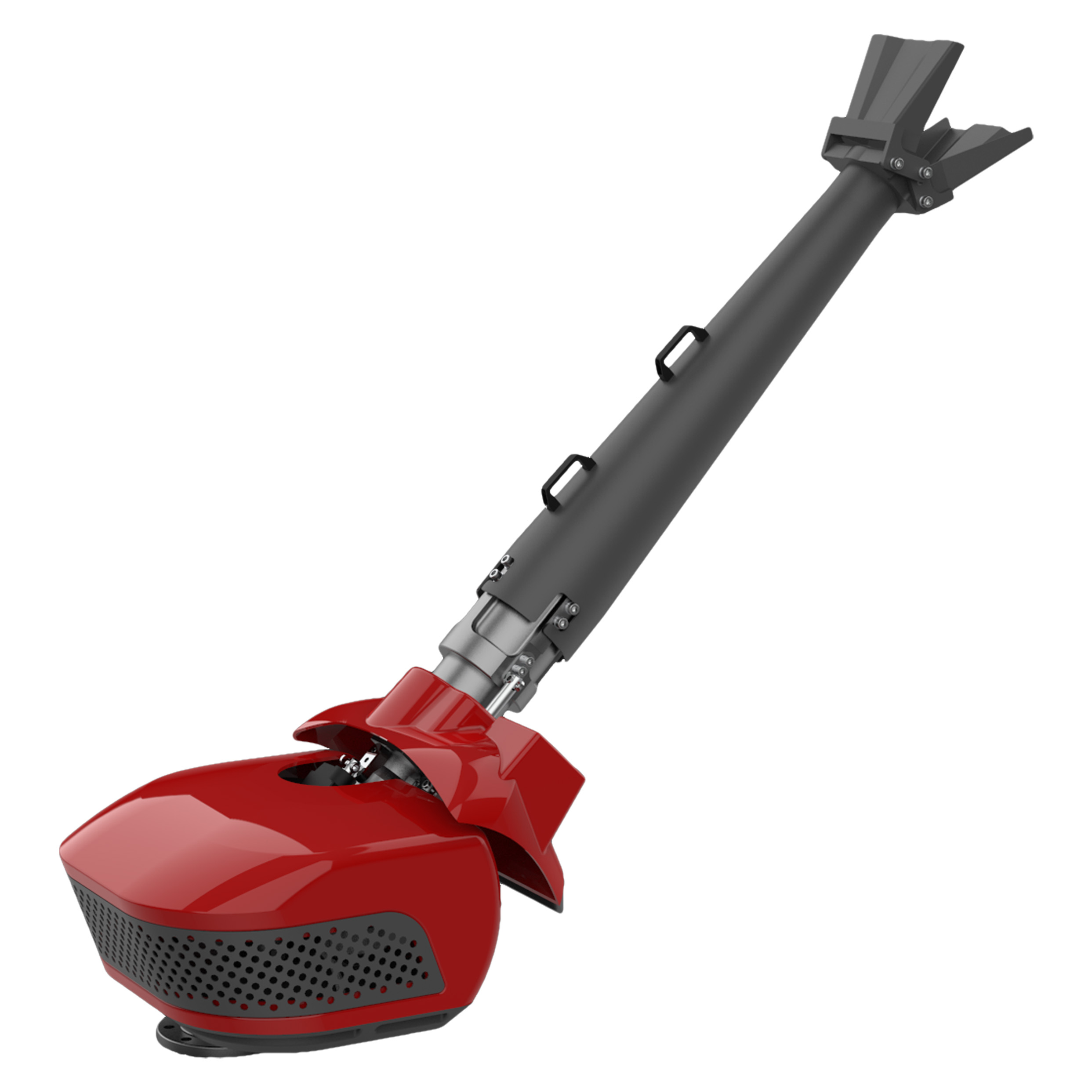

| Foam Barrel | Standard flat head, blabbermouth |
