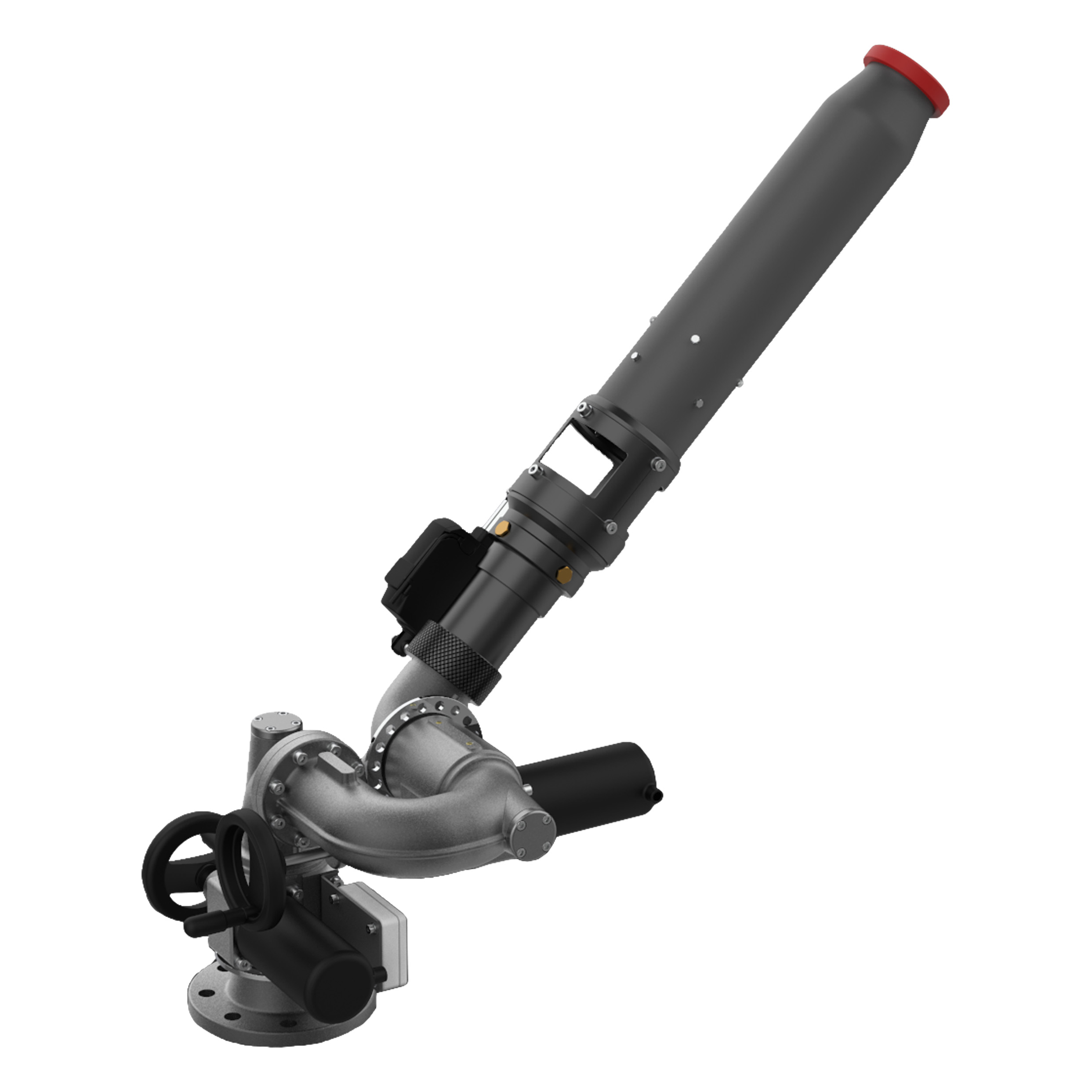

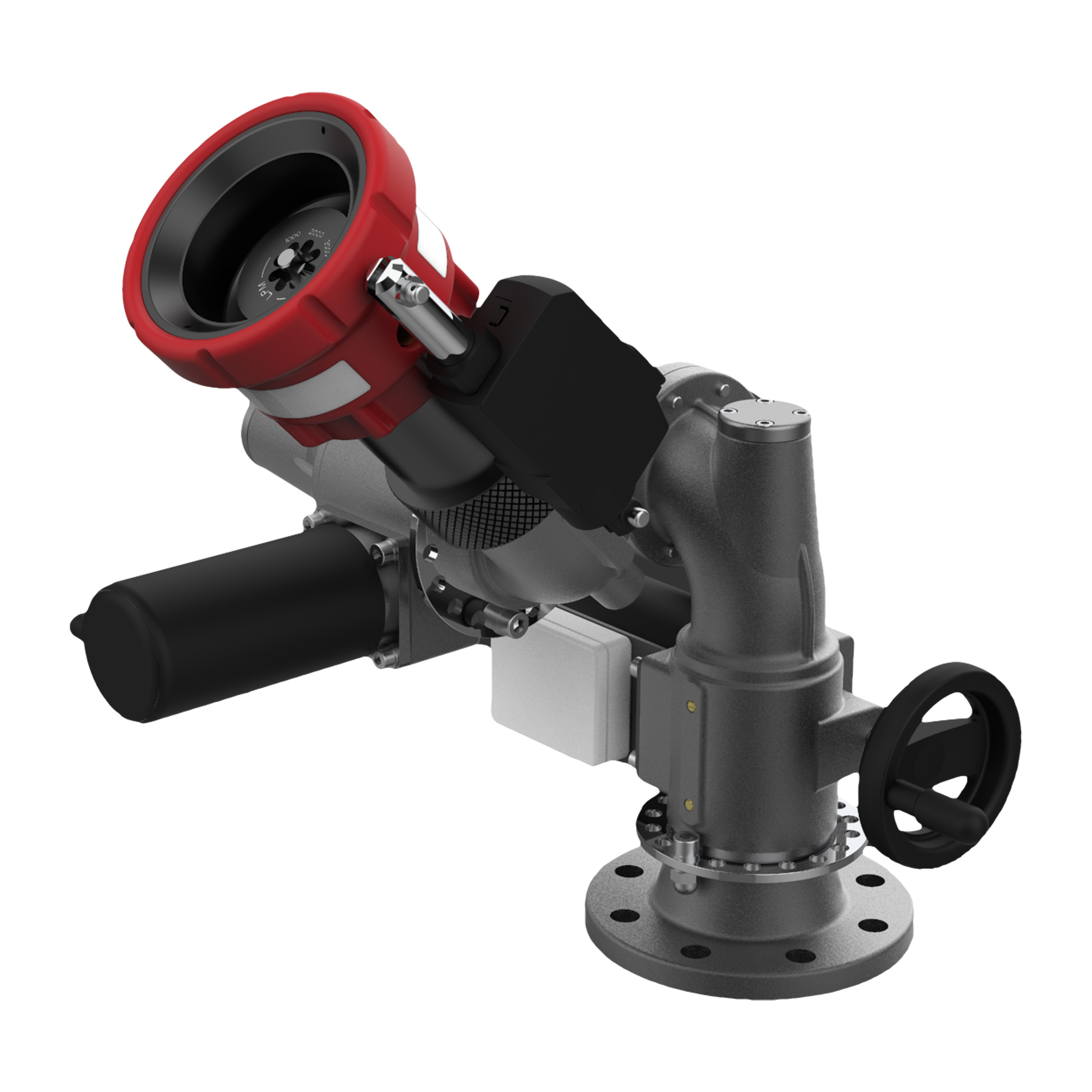

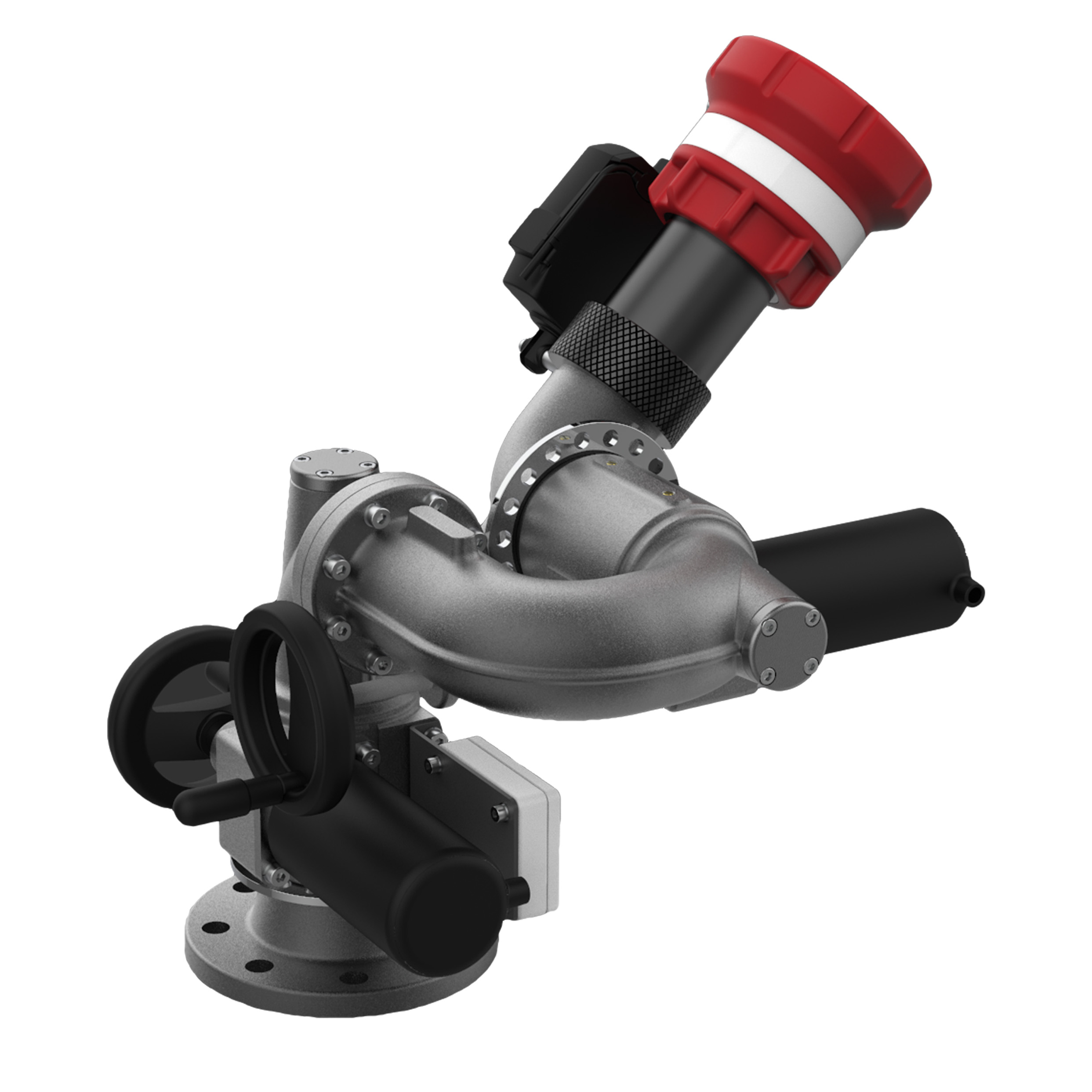

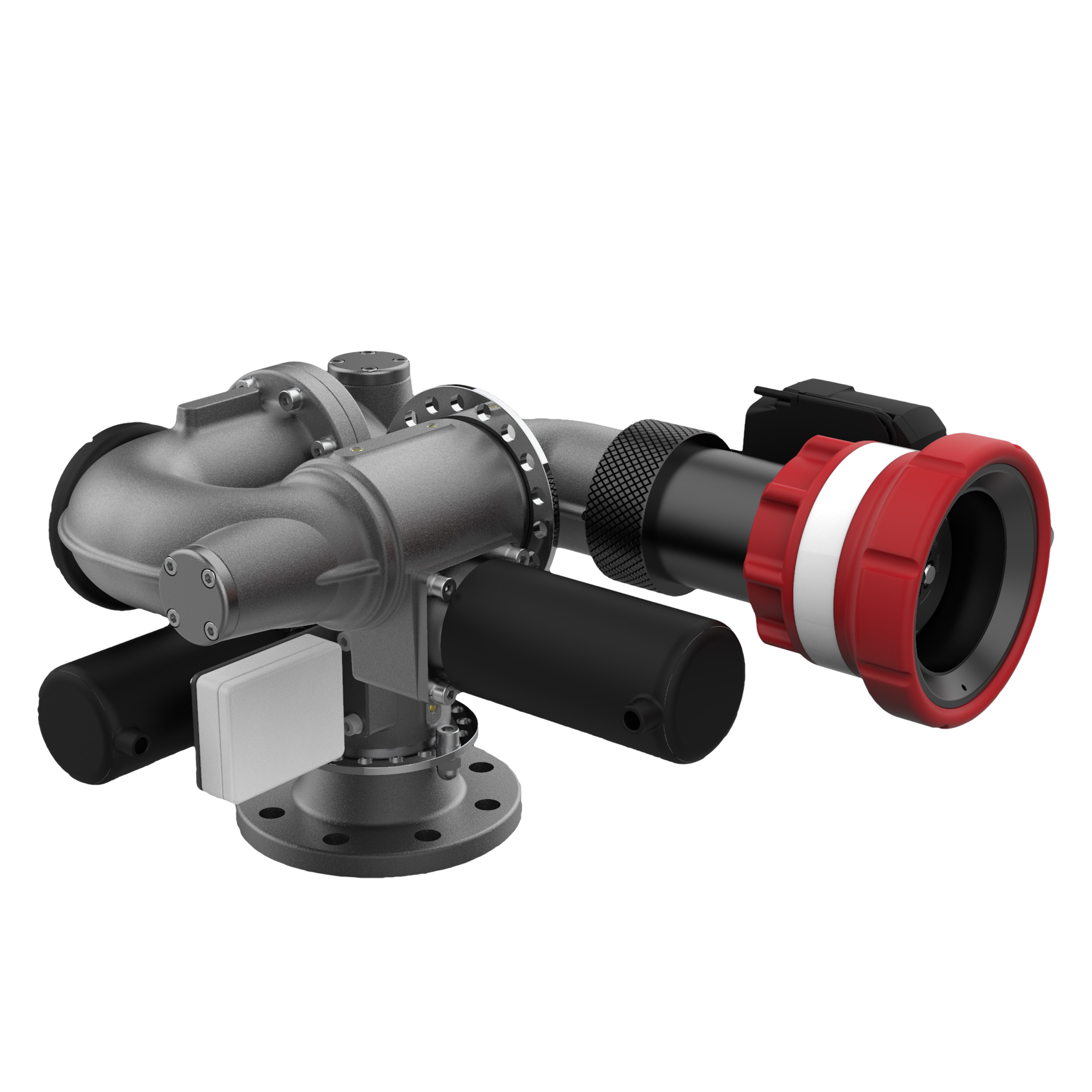

Our STRATUS monitor is a compact, electrical monitor for a various environment. It can be used as a roof monitor for all types of vehicles. The flow rate can go up to 3,500 lpm at 7 bar at the monitor’s outlet. Vertical range is from -15° to +75°, horizontal range 360° by electric motors.It can be equipped with different outlet equipment or couplings.
| Technical Specifications | Options |
|---|---|
| Drive | Electric motors 12V, 24V (Optional handwheels for emergency operations) |
| Max. Flow Rate | 3500 lpm @7bar nozzle pressure |
| Max. Pressure | 16 bar |
| Inlet | 2½" NPT, 2½" BSPT, DN 80 Flange |
| Outlet | 2½" NPT, 2½" BSPT |
| Vertical Range | -15º to +75º (can be adjustable) |
| Horizontal Range | 360° max |
| Nozzle Type | With linear actuator straight jet/stream and wide-angle fog |
| Material/Finish | Aluminum / Hard Anodized |
| Technical Specifications | Options |
|---|---|
| Camera | Optional |
| Controller | Joystick, remote control |
| Position Indicator | Rotary switch, absolute encoder |
| Projector | Long range, close range or both |
| Foam Barrel | Standard flat head, blabbermouth |
